Ring   Butt   Fork   Quick   Bullet   Specials

            Ring Terminal Vinyl Insulated

Part# Gauge Stud Size
AR2206 22-18 4-6
AR2210 22-18 8-10
AR2214 22-18 1/4
AR2256 22-18 5/16

AR1606 16-14 4-6
AR1610 16-14 8-10
AR1614 16-14 1/4
AR1638 16-14 5/16-3/8

AR1206 12-10 4-6
AR1210 12-10 8-10
AR1214 12-10 1/4
AR1238 12-10 5/16-3/8
AR1250 12-10 1/2

AR0856 8 5/16
AR0838 8 3/8
AR0850 8 1/2

AR0656 6 5/16
AR0638 6 3/8
AR0650 6 1/2

Butt Connectors  Insulated

Part# Gauge Insulation
AB22 22-18 Vinyl
AB16 16-14 Vinyl
AB12 12-10 Vinyl
AB08 8 Vinyl

AB22N 22-18 Nylon
AB16N 16-14 Nylon
AB12N 12-10 Nylon

Fork Terminals Vinyl Insulated

Part# Gauge Stud Size
AF2206 22-18 4-6
AF2210 22-18 8-10

AF1606 16-14 4-6
AF1610 16-14 8-10

AF1206 12-10 4-6
AF1210 12-10 8-10



Flanged Fork Terminal Vinyl Insulated

Part# Gauge Stud Size
AF2206G 22-18 4-6
AF1606G 16-14 4-6

Quick Connectors Male Vinyl Insulated

Part# Gauge Size
A2225M 22-18 .250
A1625M 16-14 .250
A1225M 12-10 .250

Quick Connectors Male Fully Insulated Nylon

Part# Gauge Size
A2225MFN 22-18 .250
A1625MFN 16-14 .250
A1225MFN 12-10 .250

Quick Connectors Female Vinyl Insulated

Part# Gauge Size
A2225F 22-18 .250
A1625F 16-14 .250
A1225F 12-10 .250

Quick Connectors Female Nylon Insulated

Part# Gauge Size
A2225FFN 22-18 .250
A1625FFN 16-14 .250
A1225FFN 12-10 .250

Bullet Male Vinyl Insulated

Part# Gauge Size
A1657M 16-14 .157
A1676M 16-14 .176

 Bullet Female Nylon Insulated

Part# Gauge Size
A1657FN 16-14 .157
A1676FM 16-14 .176



SPECIALS

T-Tap  Self Stripping  UL/CSA

                Mates with most .250 Male Blades

Part# Gauge Size
TT22 22-18 .250
TT16 16-14 .250
TT12 12 .250

Quick Splices - Self-Stripping  UL

Part# Gauge
AQS1814 18-14
AQS1210 12-10

  Heat Seal Butt connector

bulletMoisture Resistant
bulletNylon/Polyolefin Insulation
Part# Gauge
AB22HS 22-18
AB16HS 16-14
AB12HS 12-10

Fuse Holder Self-Stripping

Blade type fuse- 20 amp max.

Part# Gauge
SSFH 18-14

Pig Tail Connector - Self Stripping

bulletMoisture Resistant
bulletSealant Filled
bulletUL/CSA
bulletConnects 3 wires
Part# Gauge
SSPTSF 22-14

Without Sealant

Part# Gauge
SSPT 22-14

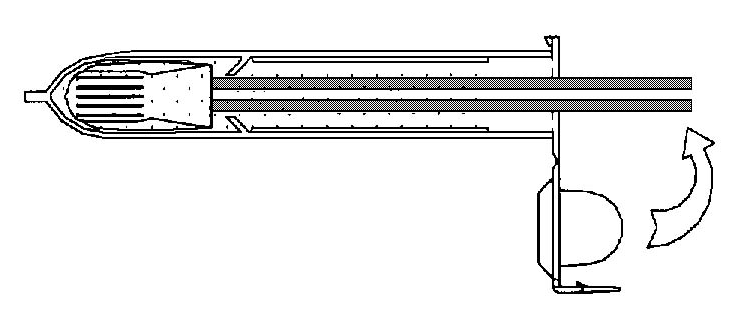

UnderGround Splice Kit Sealant Filled

Part# Volts

#of Wires And Gauge

USKY 30

2#18, 2#12

USKR 30

7#18,4#12,3#10

USKY6      UL 600

2#18,2#12

USKR6      UL 600

7#18,4#12,3#10

Moisture Sealing Tape - Self Fusing

Part# Size
MST10 2 1/2" X 10'
